OEM Compatibility: ABB/SACE

For Equipment: EMAX2 air circuit breakers

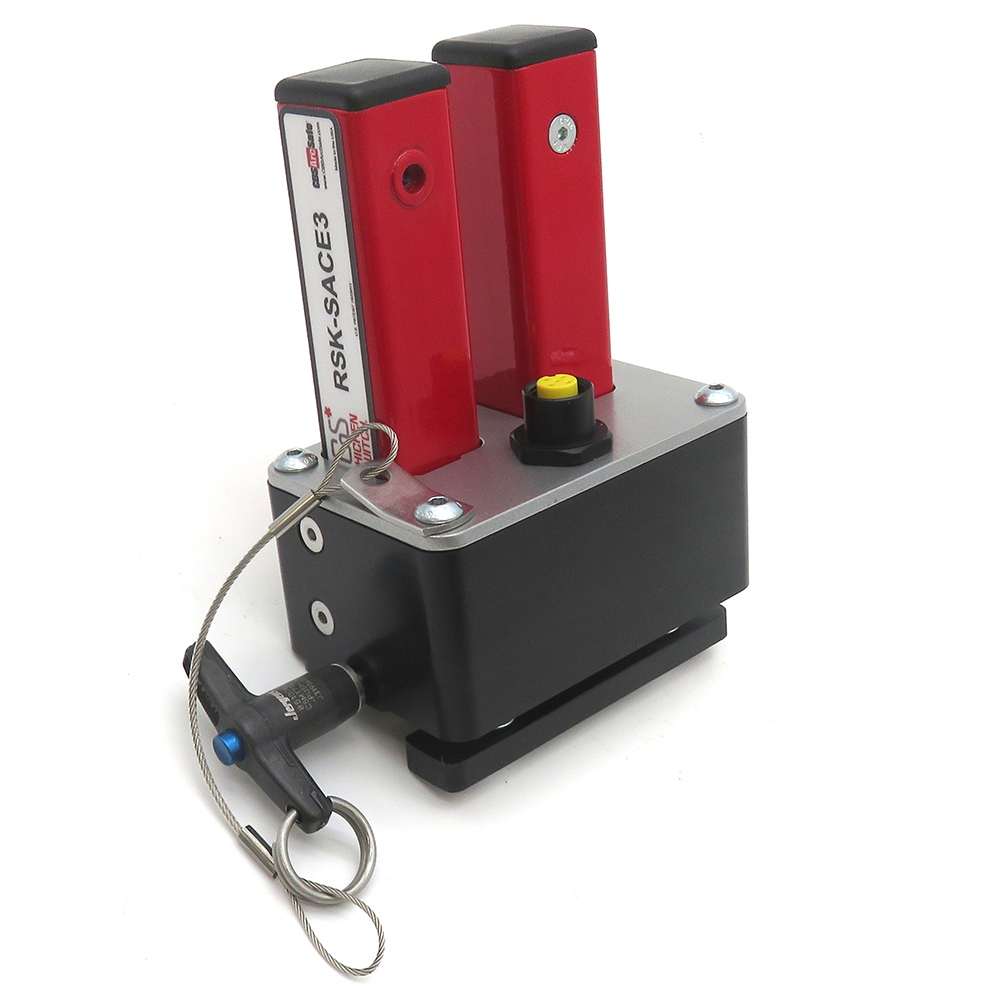

The CBS ArcSafe RSK-SACE3 is compatible with EMAX2 (1.2–6.2 frames) circuit breakers, 800–6000 A, with factory button covers. The device allows technicians to remotely operate equipment from outside the arc flash boundary (up to 50 feet away). In the event that the breaker does not have a button cover, CBS ArcSafe will supply an optional replacement.

The RSK-SACE3 is simple to set up and requires no modifications to existing electrical equipment. Weighing 3.5 lbs., it is lightweight and portable, making it ideal for hard-to-access areas. Quick installation and removal ensure minimum downtime.

Features:

• Remote operation from up to 50 feet away
• Lightweight and portable for hard-to-access areas
• Simple setup, no equipment modification required
• Quick installation and removal from gear
• Kit is set up for most common applications
• Reduces or eliminates need for arc flash hazard suits
• Eliminates all hazardous manual contact with gear during operation
• Designed, manufactured, and assembled in the USA

Equipment Type: EMAX2 air circuit breakers
Weight (lbs): 3.5
Dimensions (in. DxWxH): 4.98 x 3.56 x 2.30
Operating Distance (feet): 30-50
Control/Power Source: Handheld controller with AA batteries
