CBS ArcSafe Remote Circuit Breaker Racking

Each CBS ArcSafe® remote racking system enables service personnel to stand outside the arc flash protection boundary while racking low and medium voltage draw-out circuit breakers, thus reducing the need for a full-body arc flash hazard suit. Aid compliance with NFPA 70E relative to protecting personnel by using external circuit breaker rack-out devices.

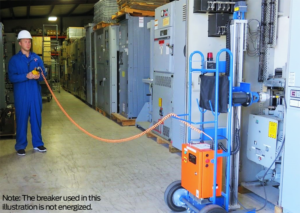

Universal Rotary Remote Racking

Each CBS ArcSafe® remote racking system enables service personnel to stand outside the arc flash protection boundary while installing or removing low- and medium-voltage draw-out circuit breakers or MCC buckets, thus reducing the need for a full-body arc flash hazard suit.

Extraction Remote Racking

Each CBS ArcSafe® RRS-3 Apparatus-Specific Portable Remote Racking System is a portable, standalone device designed to remotely rack a single type/style circuit breaker. These inexpensive, single-application remote breaker racking systems allow the operator to use a hand-control unit to install and remove a breaker while standing up to 300 feet away.

Apparatus-Specific Remote Racking

CBS ArcSafe® remote switch actuators are designed to remotely charge, close, and/or trip various styles and types of electrical equipment. The remote switch actuators are most commonly assisted by strong magnets so that modifications are not required to your switchgear. This also allows operators to easily move the remote switch actuator from one breaker to another.

Remote Switch Actuators & Operators

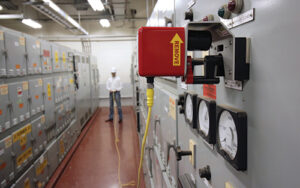

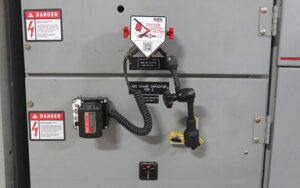

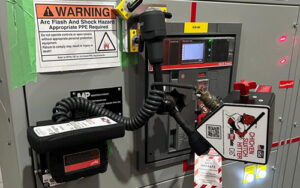

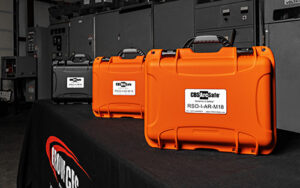

CBS ArcSafe® Chicken Switch® remote switch kits (RSKs) are designed to remotely operate (close/trip) select models of circuit breakers and motor control centers. Offering maximum portability, the lightweight RSK products differ from other CBS ArcSafe® products by providing complete kits that include a handheld controller, batteries, control cable, and actuator, all packaged in a customized Pelican® carrying case.

Remote Switch Kits

CBS ArcSafe’s® optional PD Alert provides an additional layer of safety for technicians tasked with racking or removing circuit breakers and motor control centers. In the event of a breakdown in line-to-line or line-to-ground insulation, the PD Alert radio frequency (RF) non-contact sensor issues a visual strobe alarm or digital alarm via email or SMS text message.

Options and Accessories

Product Finder

RSK-PMT

The RSK-PMT remote switch kit (RSK) for pad-mounted transformers (PMT) provides remote switching operations for PMTs in applications such as wind farms, facilities management, solar, and utility distribution.

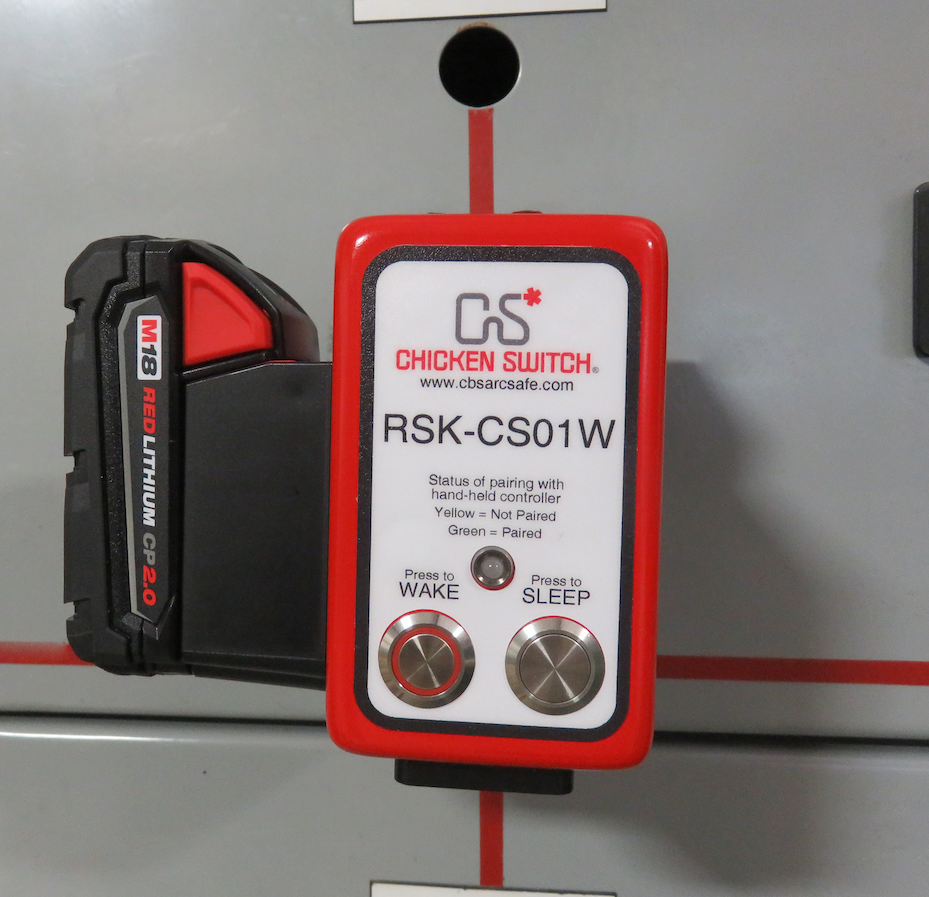

RSK-CS01W

The RSK-CS01W, a wireless remote switch kit, operates control switches with pistol-grip handles from up to 100 feet away, well outside the arc-flash boundary.

CBS ArcSafe RSK-PMT ECM Award Homepage Banner

Rotary Remote Racking

Universal remote circuit breaker racking system capable of removing or inserting low- and medium-voltage draw out circuit breakers which use a jack screw rotary racking mechanism while the operator remains outside the arc-flash boundary.

Extractor Remote Racking

Universal remote circuit breaker racking system capable of removing or inserting low- and medium-voltage non-rotary circuit breakers while the operator remains outside the arc-flash boundary.

Handheld Remote Racking

A handheld powered racking device capable of racking most rotary style low- and medium-voltage switchgear utilizing a high torque motor, preventing operator fatigue and reducing time spent within the arc flash boundary.

Apparatus-Specific Portable Remote Racking

Apparatus-specific remote circuit breaker racking system which allows the operator to install and remove a circuit breaker while standing 25 to 75 feet away with a hand control unit, with radio remote option.

Remote Switch Actuators

Allows service personnel to move, push, pull, charge, close, and/or trip circuit breakers and other electrical equipment from a safe distance in conjunction with a CBS ArcSafe RSO.

Options and Accessories

From CBS ArcSafe’s PD Alert partial discharge sensor option to a radio remote up to 300 feet to a wireless video system, CBS ArcSafe has a variety of optional equipment and accessories available for its remote switch and racking systems.

Secure-Connect-remote-operator-Rockwell-Automation-Partner

SecureConnect™ Remote Operator Adds Arc-Flash Safety to Motor Control Center Maintenance

CBS ArcSafe^® is pleased to introduce the SecureConnect Remote Operator for Allen-Bradley^® CENTERLINE^® 2100 Motor Control Centers (MCCs), allowing technicians to operate the SecureConnect safety system from up to 300 feet away, well outside the arc-flash boundary.

INTERESTED IN A DEMO?

Let us bring our equipment to your facility for an on-site demonstration. Request a demo.

Watch CBS ArcSafe Remote Racking and Switching Equipment in Action

RRS-2 – Remote Racking of An Allis-Chalmers MA 150,250,350C Circuit Breaker

RRS-1 – Remote Racking of an ABB EMAX Circuit Breaker

RRS-2-BE – Remote Racking of the Allen Bradley 2100 Centerline MCC buckets

RRS-3-MDSR1 – Remotely Racking of Eaton/Cutler Hammer Magnum DS Circuit Breaker

RRS-3-HK – Remotely Racking of ABB/BBC/ITE HK Circuit Breaker

RSA-152C – Remotely Operating A Boltswitch VL/BL Series

RSK-CS01W – Remotely Switching Various Breaker Control Switches

RSA-147 – Remotely Switching a Square D HVL Switch

RSK-NW20 – Remotely Switching a Square D/Masterpact NW Circuit Breaker

RSK-SDL6 – Remotely Switching a Square d Model 6 MCC Bucket

RSA-211A – Remotely Switching a Eaton/Cutler Hammer Safety Switch

RSA-12A – Remotely Operating a Cutler hammer/Square D/Westinghouse DS Circuit Breaker

Check out our YouTube video library for product demonstrations,
instructional videos, and other valuable resources.

CBS ArcSafe Recognized as an ESG Innovator
Being recognized as an ESG Innovator by Avetta showcases our dedication to environmental, social, and governance practices.Read More
Case Study: Custom Solution Brings Electrical Safety to Utility Vaults
How do you install a remote switching tool that’s normally held in place with magnets on a fiberboard enclosure?Read More
Our Electrical Safety Solutions Are Manufactured and Serviced in Texas
CBS ArcSafe expanded operations so that all products can be manufactured, serviced, and shipped from Texas. Read More

With the increase in awareness of the severity and frequency of electrical arc-flash hazards, OSHA realized the need to provide more direction and regulation to its general language. The result was a final rule to 29 CFR 1910.269, the Electrical Power Generation, Transmission, and Distribution Standard which became effective on July 10, 2014. This was the first time OSHA mandated specific arc-flash related requirements which go beyond general hazard awareness and also set mandatory compliance deadlines. At CBS ArcSafe^®, safety of our customers’ electrical workers is our top priority.

CBS ArcSafe^® stays informed about current and new requirements from both the Occupational Safety and Health Administration (OSHA) and the National Fire Protection Association (NFPA). Read more.

Each day in the United States as many as 10 injuries requiring hospitalizations are attributed to arc-flash incidents (Capelli-Schellpfeffer, Inc.).

The safety of our customers’ electrical workers is our top priority at CBS ArcSafe^®. That’s why we designed our remote racking solutions to reduce the need for full-body arc-flash hazard suits.

Remote operating equipment, specifically remote racking and remote switching systems, are an affordable, effective way to increase worker safety and stay compliant with updated safety standards. CBS ArcSafe^® is a leader in the design and development of various styles of remote operation equipment, and is dedicated to increasing arc-flash safety for electrical workers worldwide. Read more.
