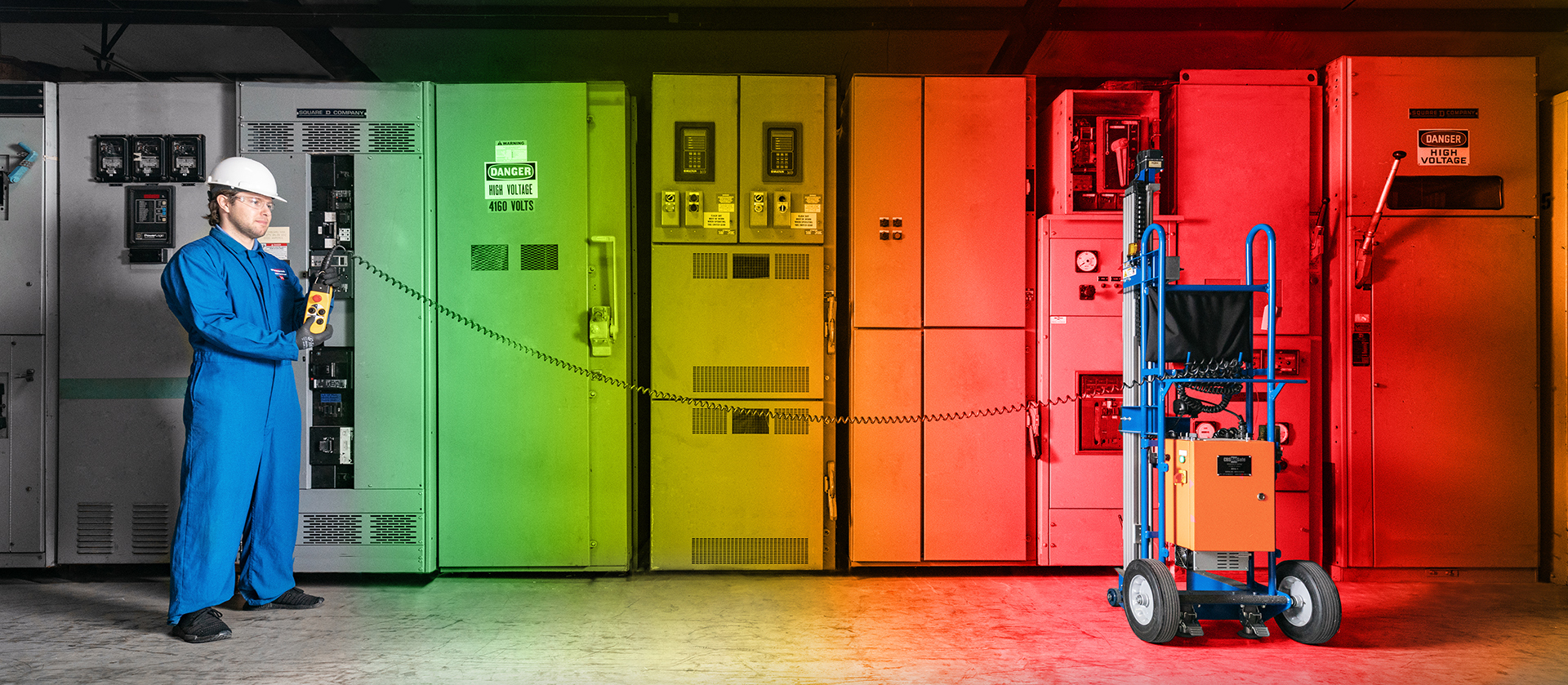

Stay Outside the Arc-Flash Boundary with Remote Racking Systems
CBS ArcSafe® remote racking systems (RRS) allow operating personnel to automatically rack circuit breakers from outside the arc-flash boundary. The unique design of these remote racking devices enables operation of all types of low- and medium-voltage circuit breakers produced by major switchgear manufacturers. These devices come in three categories to meet your needs for rotary-type equipment, extractor-type equipment, and application-specific portable remote racking.
For more information on remote racking devices, watch our videos and request an in-person demonstration at your facility.
Remote Racking Solutions Product Comparison
Universal Remote Racking Systems (RRS-1s) can remove or insert low- and medium-voltage draw-out rotary circuit breakers while the operator remains outside the arc-flash boundary. The unique design of the RRS-1, with its specially manufactured drive shafts and tooling, enables the system to operate with all types of circuit breakers produced by the major switchgear manufacturers. The remote racking system can operate with draw-out types of air, SF6, oil, and vacuum circuit breakers that have either a horizontal or vertical racking operation.
RRS-1 specifications
Weight: 200 lbs
Dimensions: 74″ H x 26″ W x 38.1″ D
System voltage: 24V DC
Input voltage: 120±10% VAC, 47-63 Hz
Maximum AC current: 12.2 A
Drive motor power: 250 W
Drive assembly speed: 80 RPM
Universal Extractor Remote Racking Systems (RRS-2s) are portable and highly configurable remote racking systems built to rack all circuit breakers with non-rotary racking mechanisms while keeping the operator outside of the arc-flash boundary. The operator is able to manipulate the breaker-specific tooling, available for numerous makes and models of switchgear, via either a wired or wireless pendant station from up to 300 feet away.
RRS-2 specifications
Weight: 160 lbs
Dimensions: 60″ H x 26″ W x 36″ D
System voltage: 24V DC
Input voltage: 120±10% VAC, 47-63 Hz
Maximum AC current: 12.2 A
Ext. actuator force: 600 lbs
Ext. actuator speed: 1.0”/second
RRS-2 BE Systems are designed specifically for motor control center bucket removal applications where users normally would be required to perform the install or remove operation manually — exposing them to the potential hazards of an arc flash. Designed to be extremely versatile, the RRS-2 BE is suited for use in all environments — from grueling applications in a power-generation facility to clean rooms at a high-tech manufacturing plant. The included wireless remote control allows users to operate the unit from up to 300 feet away.
RRS-2 BE specifications
Weight: 105 lbs
Dimensions: 74″ H x 25″ W x 32″ D
System voltage: 24V DC
Input voltage: 120±10% VAC, 47-63 Hz
Operating distance: Up to 300 feet
Application-Specific Portable Remote Racking Systems (RRS-3s) are designed to remotely rack a single style of circuit breaker. These stand-alone units feature a magnetic latching system that eliminates the need to modify switchgear and allows operators to easily move the circuit breaker racking system from one breaker to another. Each RRS-3 unit comes with a remote switch operator (RSO) for operation. A radio remote option allows for closed-door racking to occur once the RRS-3 has been attached to the breaker.
Schedule a Remote Racking On-Site Demo
We can demonstrate our remote racking systems at facilities located in North America, the United Kingdom, Korea, or the Middle East. Our team will bring remote breaker racking devices to you so you can see how our products protect technicians from arc-flash danger. Contact us today to schedule an on-site demo!
Which Remote Racking Solution Is Best for You?
Rotary Remote Circuit Breaker Racking Systems
- Remote operation places operator outside the arc-flash boundary.
- Compatible with low- and medium-voltage circuit breakers produced by all major switchgear manufacturers.
- Use with horizontal and vertical types of air, SF6, oil, and vacuum circuit breakers.
- The height and angle of the drive are easily adjusted.
- Quick-release drive shafts and couplings simplify setup.
- Provides redundant over-racking protection.
- Offers a seamless transfer of AC/DC power.
- Hand-truck design provides easy mobility.
Extractor Remote Circuit Breaker Racking Systems
- Remove or install circuit breakers and motor control center buckets while the operator remains outside the arc-flash boundary.
- Use with low- and medium-voltage circuit breakers produced by all the major switchgear manufacturers.
- Portable devices weigh less than 200 pounds.
- Use with many lever-actuated racking switchgear models that do not utilize rotary racking mechanisms.
- Easily adjust actuator height.
- Quick-connect and -release drive actuators simplify setup.
- Redundant AC/DC power.
- Hand-truck design provides easy mobility.
Application-Specific Portable Remote Racking Systems
- Lightweight construction makes the device portable.
- Offers mechanical and electrical safety protection.
- Mechanical clutch provides over-racking protection.
- Adjustable design can fit unique equipment configurations.
- Fast and easy to set up.
- No modifications to switchgear are required.
