OEM Compatibility: General Electric|GE

For Equipment: Power Break II – All Frame Sizes (Door Closed)

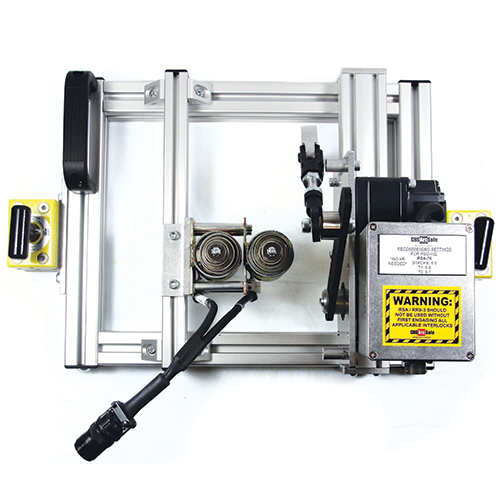

RSA-76 remote switch actuators are designed to remotely charge, close, and/or trip GE Power Break II insulated case circuit breakers.

The remote switch actuators are most commonly assisted by strong magnets so that modifications are not required to your switchgear. This also allows operators to easily move the remote switch actuator from one breaker to another.

Each CBS ArcSafe remote switch actuator is custom built to your electrical equipment so that it can safely operate your electrical equipment outside the arc-flash boundary. Any remote switch actuator can be custom-engineered for any electrical device you have available.

There are numerous CBS ArcSafe remote switch actuators that enable the system to be used with circuit breakers, motor controls, and other electrical equipment that use a variety of:

– Operating pushbuttons, such as circuit breaker trip and close buttons
– Operating levers, such as those found on motor control center buckets
– Operating lever or rotary style charging handles requiring single or multiple strokes
– Operating rotary and pistol grip switches, such as breaker control switches
– Engaging or disengaging mechanical interlocks, such as circuit breaker interlock foot-pedals or pushbuttons

Voltage Class: LV (<1000 V)
Equipment Type: Insulated Case Circuit Breakers
Power Consumption (W): 80 W
Weight (lb): 25.6 lbs
Dimensions (in.): 13.2 x 20.8 x 7.1
Operation: Charge/Close/Trip
