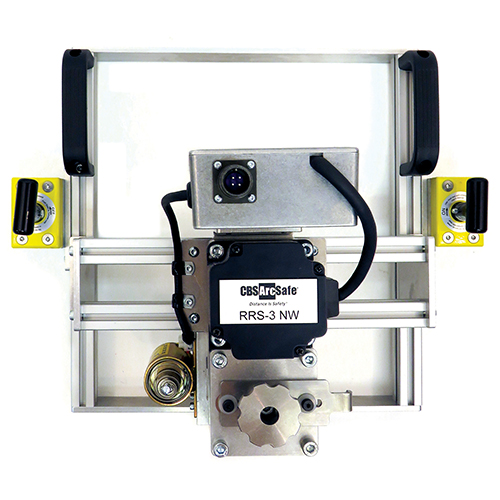

Apparatus-Specific Portable Remote Racking Tools – RRS-3 NW

OEM Compatibility: Square D|Schneider Electric

For Equipment: Type NW, 800-6000 A (includes NW 08, 16, 20, 30, 40, 50, 60)

  • The RSO-IV-M18 operator is a rechargeable 24V DC power supply that, when used in conjunction with an appropriate single-use Remote Racking System (RRS-3), will remotely perform any racking operation that would normally require local operation by trained personnel. Tasks the RSO and RRS-3s can perform include, but are not limited to, the following operations:


    • Works with RRS-3 Single-Use Remote Racking Systems
    • Installing and removing any switchgear utilizing a rotary racking mechanism
    • Installing and removing any switchgear utilizing a non-rotary racking mechanism
    • Engaging or disengaging mechanical or electrical interlocks, such as circuit breaker interlock foot-pedals or buttons
    • NEW - Blue Indicator beacon alerts user when input settings have been reached


View Product Page View Product Manual View Product Video

OEM Compatibility: Square D|Schneider Electric

For Equipment: Type NW, 800-6000 A (includes NW 08, 16, 20, 30, 40, 50, 60)

Each CBS ArcSafe RRS-3 Single-Use Remote Racking System is a portable, standalone device designed to remotely rack a single type/style circuit breaker.

These inexpensive, single-application remote breaker racking systems allow the operator to use a hand-control unit to install and remove a breaker while standing up to 300 feet away.

RRS-3 units are most commonly assisted by strong magnets, meaning that no modifications are required to your switchgear. This also allows operators to easily move the RRS-3 from one breaker to another.

Each RRS-3 is custom built to interface with your specfic circuit breaker and is provided with a RSO-IV remote switch operator which is required for its operation. A radio remote control is also available.

Voltage Class: LV (<1000 V) Equipment Type: ACB
Power Consumption (W): 100W
Weight (lb): 26.3 lbs
Dimensions (in.): 15.8 x 19.7 x 12.9

Additional information

Weight 26.3 lbs
Dimensions 15.8 × 19.7 × 12.9 in
Compatible Devices

Schneider Electric/Square D Masterpact NW
