Apparatus-Specific Remote Racking Tools – RRS-3 TemPower2(3)

Apparatus-Specific Portable Remote Racking Tools – RRS-3 TemPower2(3)

OEM Compatibility: Terasaki

For Equipment: TemPower2 ICCB (Dorman-Smith Loadline Z-Frame Series) 3-Pole Only to Include Types: AR325S , AR332S, AR440SB, AR316H, AR320H, AR325H, and AR332H

Click to View/Add Remote Switch Operator
The RSO-IV-M18 operator is a rechargeable 24V DC power supply that, when used in conjunction with an appropriate single-use Remote Racking System (RRS-3), will remotely perform any racking operation that would normally require local operation by trained personnel. Tasks the RSO and RRS-3s can perform include, but are not limited to, the following operations:
Devices
Works with RRS-3 Single-Use Remote Racking Systems
Installing and removing any switchgear utilizing a rotary racking mechanism
Installing and removing any switchgear utilizing a non-rotary racking mechanism
Engaging or disengaging mechanical or electrical interlocks, such as circuit breaker interlock foot-pedals or buttons
NEW - Blue Indicator beacon alerts user when input settings have been reached

Add Remote Switch Operator (RSO-IV-M18)

SKU: 8cdd3ff28cc8 Categories: Apparatus-Specific Portable Remote Racking Tools, RSO-IV

Description
Additional information

Description

View Product Page

OEM Compatibility: Terasaki

For Equipment: TemPower2 ICCB (Dorman-Smith Loadline Z-Frame Series) 3-Pole Only to Include Types: AR325S , AR332S, AR440SB, AR316H, AR320H, AR325H, and AR332H

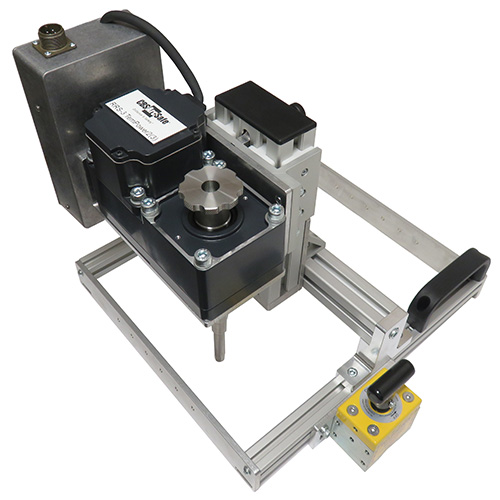

Each CBS ArcSafe apparatus-specific remote racking system (RRS-3) is a portable, standalone device designed to remotely rack a specific type/style of circuit breaker.

These inexpensive, apparatus-specific remote breaker racking systems allow the operator to use a hand-control unit to install and remove a breaker while standing up to 75 feet away.

RRS-3 units are commonly assisted by strong magnets, meaning that no modifications are required to your switchgear. This also allows operators to easily move the RRS-3 from one breaker to another.

Each RRS-3 is custom built to safely operate your specific circuit breaker and is provided with a RSO-IV-M18 remote switch operator, which is required for its operation.

Weight (lb): 30 lbs
Dimensions (in.): 14.4 x 18.6 x 16
