Remote Switch Actuator – Chicken Switch Hitter Remote Switch Kit RSK-CGM.3

OEM Compatibility: Ormazabal

For Equipment: CGM.3 switchgear

Click to View/Add Remote Switch Operator
The RSO-IV-M18 operator is a rechargeable 24V DC power supply that, when used in conjunction with an appropriate single-use Remote Racking System (RRS-3), will remotely perform any racking operation that would normally require local operation by trained personnel. Tasks the RSO and RRS-3s can perform include, but are not limited to, the following operations:
Devices
Works with RRS-3 Single-Use Remote Racking Systems
Installing and removing any switchgear utilizing a rotary racking mechanism
Installing and removing any switchgear utilizing a non-rotary racking mechanism
Engaging or disengaging mechanical or electrical interlocks, such as circuit breaker interlock foot-pedals or buttons
NEW - Blue Indicator beacon alerts user when input settings have been reached

Add Remote Switch Operator (RSO-IV-M18)

SKU: 02c4acc16dec-2 Categories: Remote Switch Actuator, RSO-IV

Description
Additional information

Description

View Product Page View Product Bulletin

OEM Compatibility: Ormazabal

For Equipment: CGM.3 switchgear

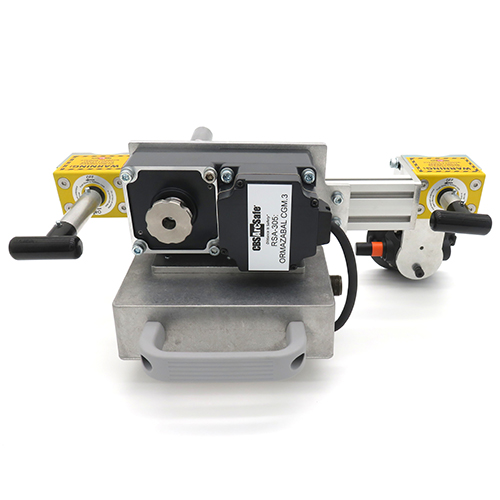

The CBS ArcSafe RSK-CGM.3 is compatible with all configurations of Ormazabal CGM.3 switchgear for disconnect and earthing switch operations. The device allows technicians to remotely operate equipment from outside the arc flash boundary (up to 300 feet away with line of sight).

Powered by a Milwaukee M18™ REDLITHIUM ion battery pack, it requires no modifications to existing electrical equipment. Weighing 17 lbs., it is lightweight and portable, making it ideal for hard-to-access areas. Quick installation and removal ensure minimum downtime, and adjustable travel and locators accommodate the entire product line.

Features:

Remote operation from up to 300 feet away
Lightweight and portable for hard-to-access areas
Simple setup, no equipment modification required
Powered by Milwaukee M18™ REDLITHIUM™ Ion Battery Packs
Quick installation and removal from gear
Adjustable travel and locators to accommodate entire product line
Reduces or eliminates need for arc flash hazard suits
Eliminates all hazardous manual contact with gear during operation

Equipment Type: CGM.3 switchgear
Weight (lbs): 17
Dimensions (in. WxHxD): 9.1 x 19.05 x 12.9
Operating Distance (feet): 12-300 with line of sight
Control/Power Source: RSO-IV-M18
