OEM Compatibility: Schneider/Square D

For Equipment: PowerPact – R Frame (includes RG, RJ, RK, RL) 600-3000 A

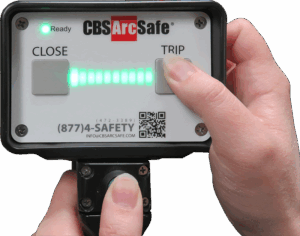

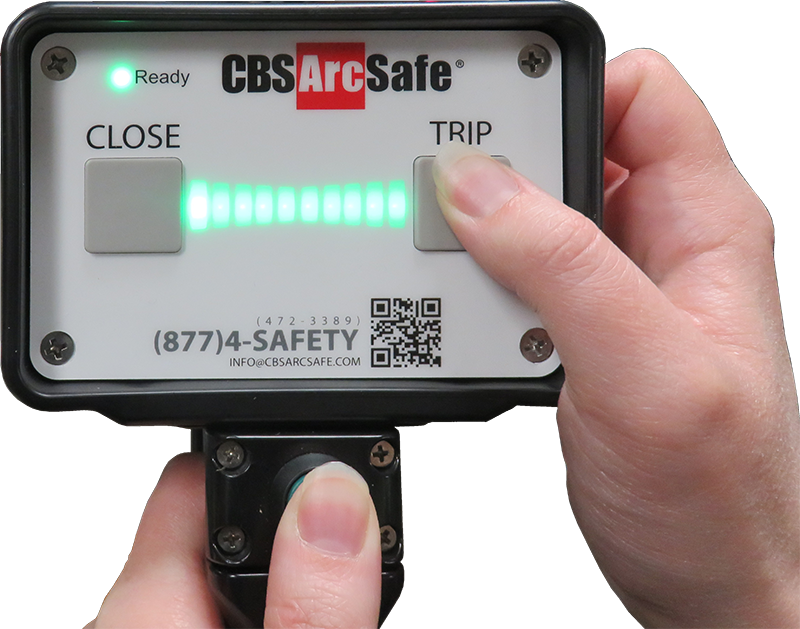

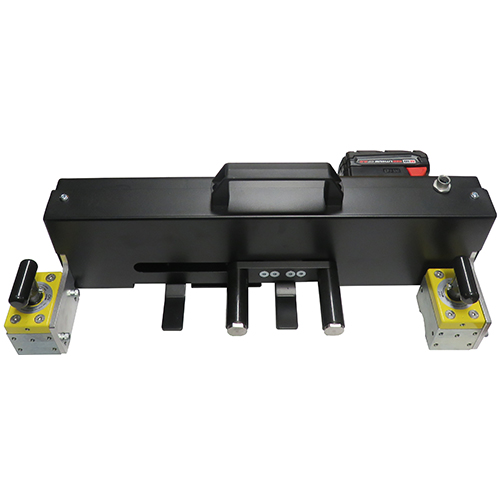

The RSK-SRF30 remote switching kit allows technicians to remotely open, close, or reset the Schneider/Square D PowerPacT R-Frame molded-case circuit breaker from a safe distance. Real-time feedback is displayed on the handheld controller via the 30-foot operating cord. The design can accommodate standard additions of a kirk-key or a lockout/tagout (LOTO) bracket on the RH side of the switch.

CBS ArcSafe remote switch actuators are designed to remotely charge, close, and/or trip various styles and types of electrical equipment.

Remote switch actuators are most commonly assisted by switchable magnets so that modifications are not required to your switchgear. This also allows operators to easily move the remote switch actuator from one breaker to another.

Each CBS ArcSafe remote switch actuator is custom built to your electrical equipment so that it can safely operate your electrical equipment outside the arc-flash boundary.

There are numerous CBS ArcSafe remote switch actuators that enable the system to be used with circuit breakers, motor controls, and other electrical equipment that use a variety of:

– Operating push buttons, such as circuit breaker trip and close buttons
– Operating levers, such as those found on motor control center buckets
– Operating lever or rotary style charging handles requiring single or multiple strokes
– Operating rotary and pistol grip switches, such as breaker control switches
– Engaging or disengaging mechanical interlocks, such as circuit breaker interlock foot-pedals or pushbuttons

Equipment Type: Molded-Case Circuit Breakers
Weight (lbs): 23.8
Dimensions (in. LxWxH): 21.875 x 8.75 x 7.75
Operation: Close/Trip
